The VISSTA XC was designed to be a robust, light, and comfortable XC-competition harness with excellent feel in the air.

It provides an outstanding flying experience with a comfortable and extremely aerodynamically efficient seating position. This makes it suitable especially for XC pilots and competition pilots who are looking for a comfortable low drag harness.

The VISSTA XC features dual integrated reserve containers, integrated D-chute pockets, and a large foam protector.
It is lightweight, and it can be folded in half making it a compact all-round harness that can be stored in a conventional medium or large rucksack.

TECHNICAL DATA

Small
BODY HEIGHT*
155-170cm
MAX. LOAD
120kg
HARNESS WEIGHT**
5.45kg
SUSPENSION HEIGHT
47cm
SEAT BOARD SIZE
29x34cm
PROTECTOR SYSTEM
Mousse bag
CERTIFICATION
EN1651 & LTF 91/09
Medium
BODY HEIGHT*
160-185cm
MAX. LOAD
120kg
HARNESS WEIGHT**
5.75kg
SUSPENSION HEIGHT
49cm
SEAT BOARD SIZE
32x40cm
PROTECTOR SYSTEM
Mousse bag
CERTIFICATION
EN1651 & LTF 91/09
Large
BODY HEIGHT*
175-195cm
MAX. LOAD
120kg
HARNESS WEIGHT**
5.9kg
SUSPENSION HEIGHT
49cm
SEAT BOARD SIZE
32x40cm
PROTECTOR SYSTEM
Mousse bag
CERTIFICATION
EN1651 & LTF 91/09
* The sizes given are references only as the individually suitable size differs according to physique and personal preferences.
** The harness weight is including aluminium carabiners, footplate, seat board.

MATERIALS

PART
FABRIC
MATERIAL
Ripstop N20/ 420D & Cordura
PART
RISERS
MATERIAL
15/25 mm Polyester Technisangle Webbing
PART
LEG AND CHEST CLOSURES
MATERIAL
AustriAlpin Cobra
PART
CARABINER
MATERIAL
Edelrid Alias
PART
SPEED SYSTEM PULLEY
MATERIAL
Ronstan D20
PART
SEAT BOARD
MATERIAL
Synthetic; honeycomb design

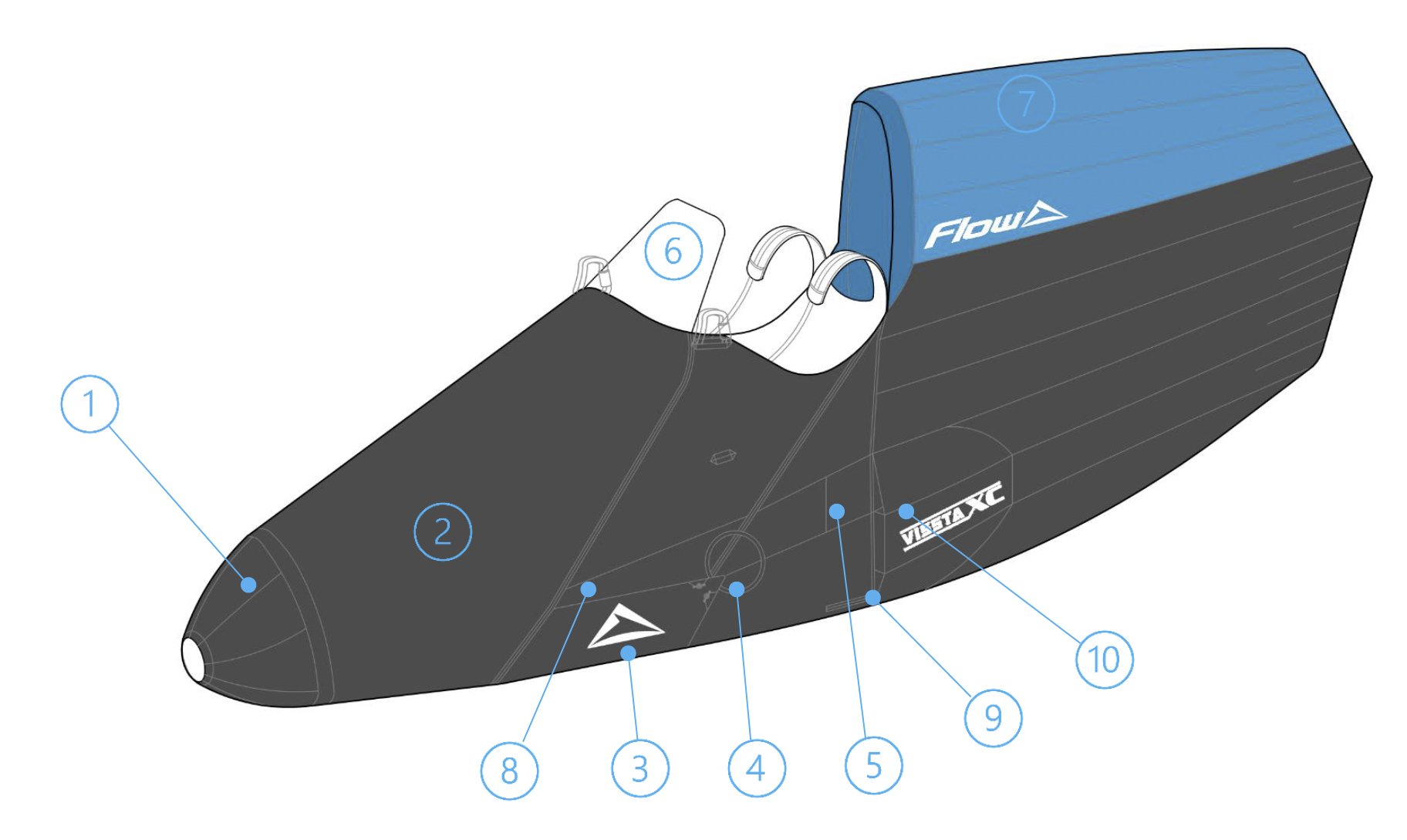

OVERVIEW

1. Nose pod
2. Detachable leg cover
3. Rescue system container
4. Rescue system release handle
5. D-CHUTE container
6. Windshield (optional)
7. Detachable aerodynamic fairing
8. Pee tube outlet
9. Ballast hose outlet
10. Air inlet

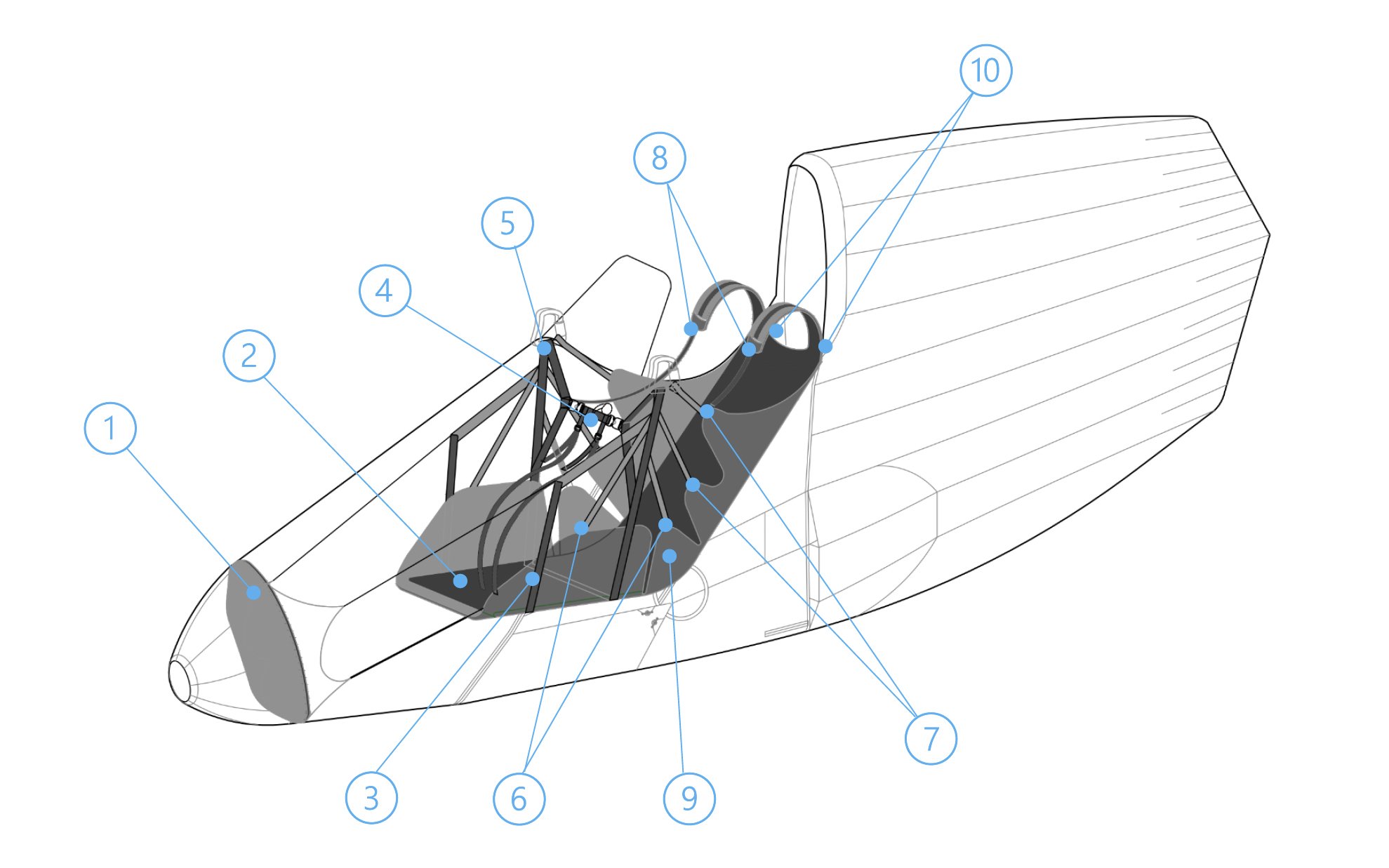

WEBBING STRUCTURE

1. Foot plate with adjustment lines
2. Seat board
3. Carbon rod
4. Safe T-System with chest strap buckle
5. Main suspension webbing
6. Seat adjustment strap
7. Back adjustment strap
8. Shoulder strap with adjustment buckle
9. Pulley / ring for speed bar line
10. Harness – bridle reserve parachute
connection point

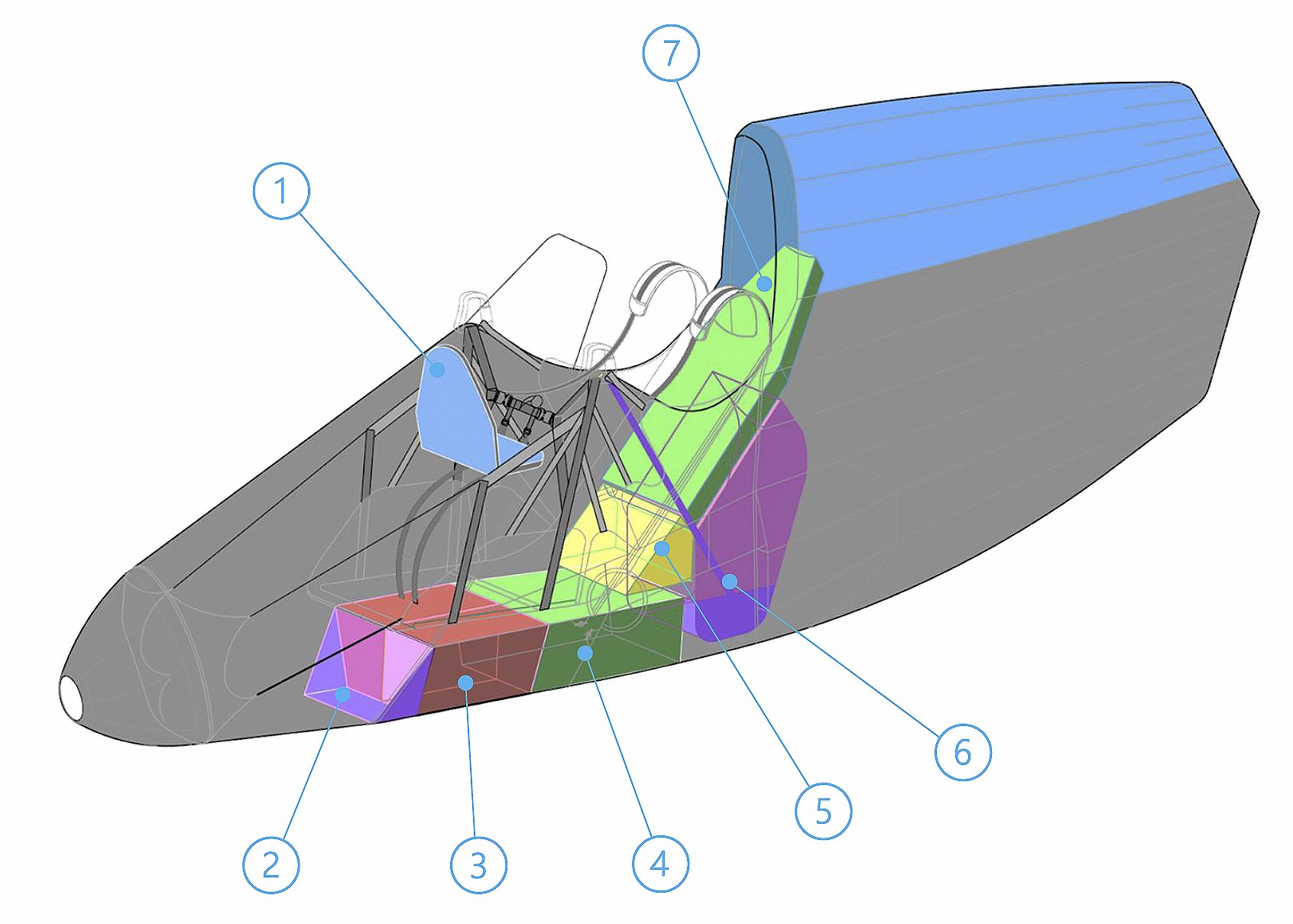

COMPONENTS POSITION

1. Flight-deck
2. Front storage bag 3.5 lit.
3. Dual rescue system container
4. Main back protector certification              #PH_438.2024
5. D-Chute container
6. Main storage bag with loading strap
7. Back head protector
8. Radio pocket (optional)
